5G Adapter
$399.00

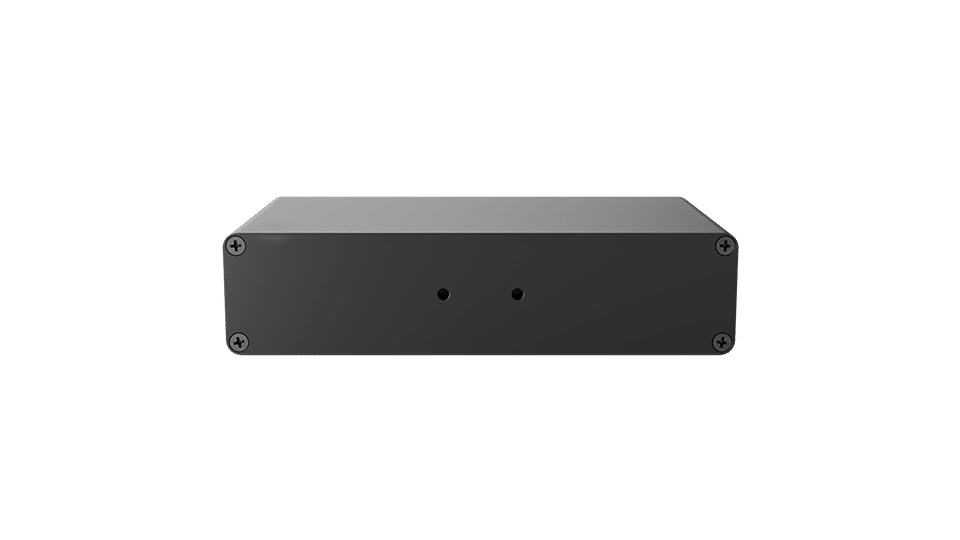

The Peplink ADP-5GY-T-PRM is a 5G cellular adapter purpose-built for vehicle, fixed, and infrastructure deployments requiring carrier-grade uptime. Powered via 802.3at PoE over a 2.5G LAN port, it adds a fully managed 5G WAN connection to any compatible Peplink router — no USB port required. AT&T, T-Mobile, and FirstNet certified for North America.
Overview
Overview
The Peplink ADP-5GY-T-PRM is a dedicated 5G cellular adapter built for vehicle, fleet, and infrastructure deployments. It connects via a 2.5G LAN port and draws power from any 802.3at PoE-capable port on your Peplink router or switch — no USB port and no separate power supply required.
With an embedded North America 5G modem certified for AT&T, T-Mobile, and FirstNet, this adapter adds a fully managed 5G WAN to your existing Peplink router. GPIO, ignition sensing, and integrated GPS make it a natural fit for in-vehicle and mobile command deployments.
Key Features
- 1x Embedded 5G Modem — North America, sub-6GHz
- 1x 2.5G LAN Port — Ethernet WAN interface, powered via 802.3at PoE
- GPIO — External device integration and sensor input support
- Ignition Sensing — Auto power on/off with vehicle ignition
- Integrated GPS — Real-time location for fleet tracking via InControl2
- Carrier Certified — AT&T, T-Mobile, and FirstNet (Band 14)
- InControl2 Compatible — Centrally managed alongside your Peplink stack
Use Cases
Fleet & Vehicle Deployments
Ignition sensing and GPIO support make the ADP-5GY-T-PRM a clean fit for transit vehicles, emergency response, and fleet trucks. The unit powers on with the ignition, GPS reports location back to InControl2, and GPIO pins integrate with onboard systems — all over a FirstNet and T-Mobile certified 5G connection.
Public Safety & Government
FirstNet certification on Band 14 gives law enforcement, EMS, and emergency management teams priority access on AT&T’s dedicated public safety network. Pair with a Peplink router running SpeedFusion to bond this 5G WAN with a secondary link for mission-critical uptime.
IT Managers & MSPs — WAN Expansion
Add a 5G WAN to any compatible Peplink Balance or MAX router by plugging the ADP-5GY-T-PRM into an open PoE LAN port. No USB port needed, no extra power brick, no new hardware footprint. Managed centrally through InControl2 alongside your existing deployment.
Fixed & Infrastructure Sites
Mount the adapter for optimal signal, run a single PoE cable back to the router, and manage everything remotely through InControl2. The 2.5G LAN interface supports high-throughput 5G without the bottleneck of a standard gigabit port.
Technical Specifications
| SKU | ADP-5GY-T-PRM |
| Cellular Modem | 1x Embedded 5G — North America |
| LAN Interface | 1x 2.5G Ethernet (RJ45) |
| Power Input | 802.3at PoE via LAN port |
| GPIO | Yes |
| Ignition Sensing | Yes |
| GPS | Yes |
| Carrier Certifications | AT&T, T-Mobile, FirstNet |
| Region | North America |
| Management | InControl2 |
Specifications
| Function | Adds a 5G WAN to any router or firewall |
|---|---|
| Technology | 5G |
| Cellular modems | 1 modem |
| Cellular modem | 1× embedded 5G (NSA and SA sub-6 GHz) / LTE CAT-19 |
| Cellular speed | CAT-19 up to 1.6 Gbps down / 200 Mbps up |
| Carrier certifications | US carrier certifications (North America model) |
| SIM options | 2× Nano-SIM (4FF), Peplink eSIM (1 GB preloaded), BYO eSIM, RemoteSIM, FusionSIM |
| Ethernet | 1× 2.5G (10/100/1000/2500M) RJ45 to the host router |
| Antenna connectors | 4× SMA cellular, 1× SMA GPS |
| Power input | AC 100–240 V, micro-fit 10–30 V DC, or PoE 802.3at |
| Power consumption | 6.5 W nominal / 10 W maximum |
| Weight | 0.86 lb / 390 g |
| Operating temperature | -40 to 149 °F / -40 to 65 °C |
| GPS | Built-in GPS with ignition sensing and GPIO |
